Mann Hummel Pico NLG 21-18 Air Filter Housing 4474285952

$ 91.54

Category:

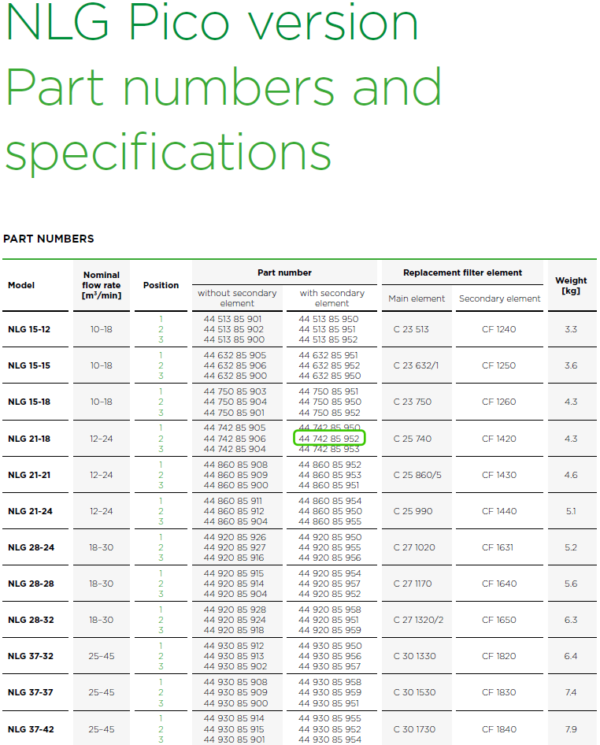

Description Pico NLG 21-18 (Part No. 4474285952) Product Specifications The NLG series developed by MANN HUMMEL is an economic solution for the filtration of intake air in numerous applications. The flexibility of the series is achieved by a variable modular system. The NLG Pico single stage air cleaner is designed for applications with a low dust load while the NLG Piclon version with integrated dust pre-separation is used for applications with a medium dust load. Our combination air cleaner with separate DualSpin pre-separator is designed for highest dust loads. Elements used in this Pico Housing Main element C 25 740 Secondary element = CF 1420 Raw Air Inlet Position = 2 See pages 68 to 89 in the Mann Air Filter Catalogue Product Details Up to 12-24 cubic metres per minute Optional - Rain Cap 3919067910 Optional - Straight Connector 3970027999, 3970027979 Optional - 90 degree Elbow 3970025999, 3970025979 Pico NLG Advantages Corrosion-free and robust housing through use of plastic reinforced with glass fiber Environmentally-friendly and economical disposal through filter elements which are metal-free and fully incinerable Cr(VI)-free components Easy adaptation to different devices through variable inlet positions Quick initial installation on vehicle through integrated threaded inserts Standard wire clamp fasteners for easy change of the filter element without the need for tool
